Thermal Camera for Automotive Diagnostics

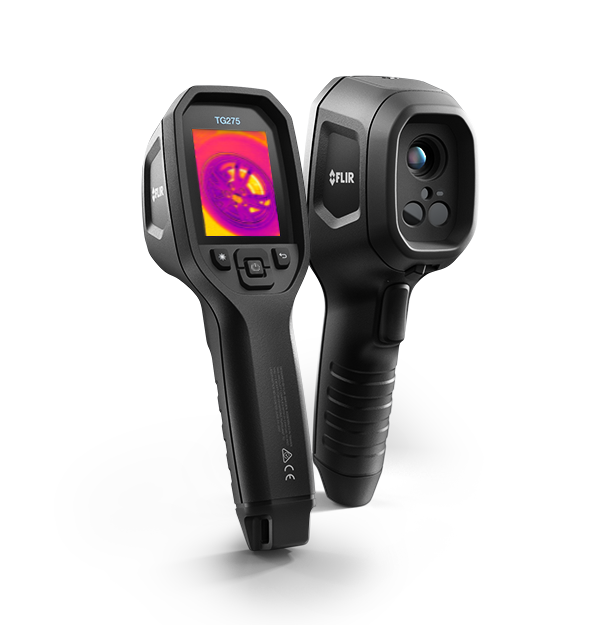

FLIR TG275

Go to Product Support
product image

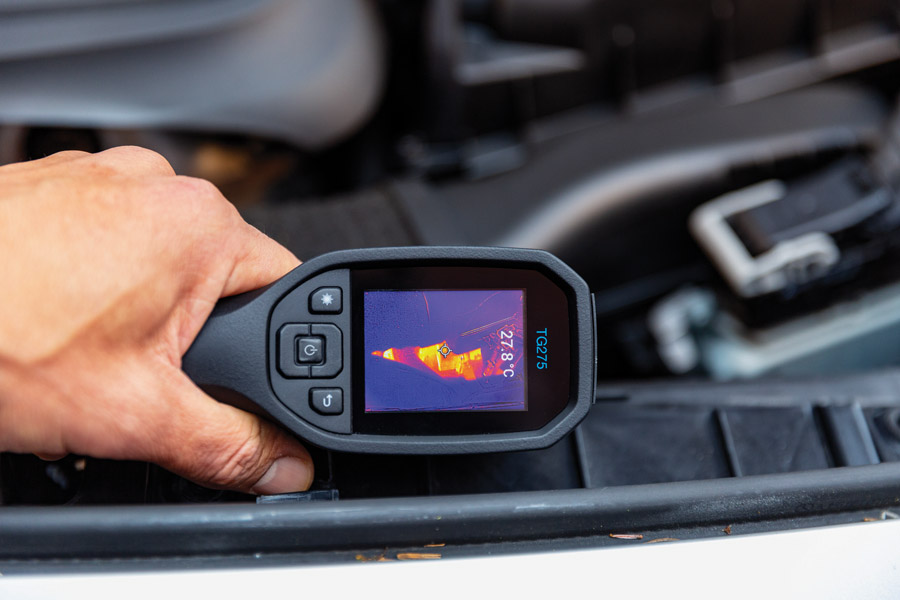

The FLIR TG275 is designed specifically for automotive maintenance and repair technicians who want to accelerate diagnostic procedures and avoid undetected problems. Featuring IGM™ (Infrared Guided Measurement), this diagnostic tool combines non-contact temperature measurement and thermal imaging to help you troubleshoot repairs, spot potential faults, and record images that will reassure your customer that the problem has been fixed. This affordable thermal imager is ideal for diagnosing problems in relays and switches, parasitic drain on the battery, drive train components, HVAC system (vents), and much more.

Sales Contact Contact Sales

Designed for Automotive Maintenance/Repair Professionals

  • Identify more problems, faster

    19,200 pixel IR camera and temperature range up to 550°C (1022°F) surpass the limitations of spot IR thermometers

  • Superior image quality, affordable price

    Get the sharp visual detail of FLIR MSX®, displayed on a vibrant 2.4-inch screen

  • Rugged and Reliable

    Tough, drop-tested design with an IP54 enclosure that protects the camera from dirt, dust, and oil







get inspection information to the people you need

FLIR METERLiNK® App

The FLIR METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team.

Learn More

Sale pricing valid for U.S. only

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

Specifications
IR Resolution
160 × 120 pixels
Thermal Sensitivity/NETD
<70 mK
Accuracy
±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F)
Field of view (FOV)
57° × 44°
Image Modes
• MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
Display
320 × 240 pixel, 2.4 in color LCD
Storage Media
eMMC 4 GB
Imaging & Optical
Automatic Image Adjustment
Yes
Built-in Digital Camera
Yes
Color Palettes
Iron, Rainbow, White hot, Black hot, Arctic, Lava
Detector Pitch
12 µm
Detector Type
Focal plane array (FPA), uncooled microbolometer
Digital image enhancement
Yes
Field of view (FOV)
57° × 44°
Focus
Focus free
Gallery
Yes
Image Frequency
8.7 Hz
Image Modes
• MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
IR Resolution
160 × 120 pixels
Laser
Class 1 laser indicates the temperature measurement area; button-activated
Minimum Focus Distance
0.3 m (0.98 ft.)
Minimum Measurement Distance
0.26 m (0.85 ft)
Spectral Range
7.5–14 µm
Thermal Sensitivity/NETD
<70 mK
Measurement & Analysis
Accuracy
±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F)
Camera size (L x W x H)
210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in)
Camera weight incl battery
0.394 kg (13.9 oz)
Center spot
Yes
Emissivity Correction
Yes: 4 preset levels with custom adjustment of 0.1–0.99
Object Temperature Range
-25°C to 550°C (-13°F to 1022°F)
Set-up Commands
• Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images
Spot Meter
Center spot on/off
User Interface
Display
320 × 240 pixel, 2.4 in color LCD
Languages
Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Power
Battery charge life
30 days minimum
Battery operating time
5 hours continuous scanning, 4.5 hours with laser on
Battery type
Rechargeable Li ion battery
Battery voltage
3.7 V
Charging system
Battery is charged inside the camera
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time
4 hours to 90%, 6 hours to 100%
Power Management
Adjustable: off, 5 min., 15 min., 30 min.
Environmental & Certifications
Drop test
Designed for 2 m (6.6 ft)
EMC
• EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Encapsulation
IP 54 (IEC60529)
Humidity (Operating and Storage)
0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range
• Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) • Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
Radio Spectrum
• ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009
Safety
CE/CB/EN61010/UL
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
-30°C to 55°C (-22°F to 131°F)
Tripod Mounting
1/4 in.-20 on handle bottom
Vibration
2 g (IEC 60068-2-6)
Warranty
FLIR 2-10 warranty
General
Includes
TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
Weight [battery included]
0.394 kg (13.9 oz.)
