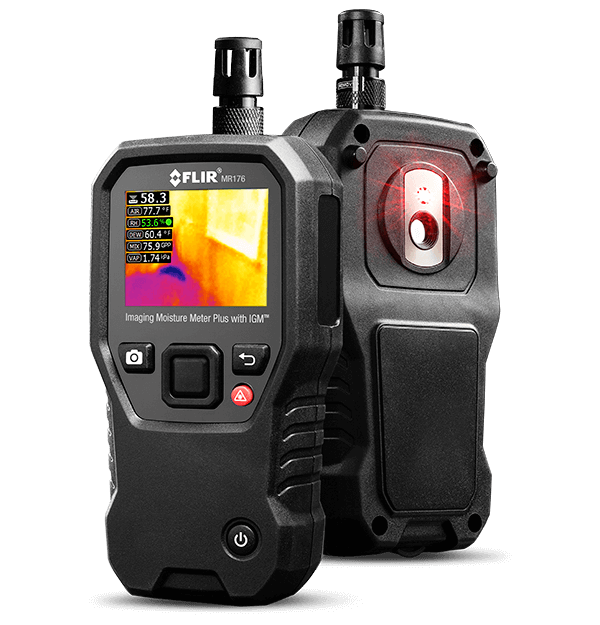

IGM™ Moisture Meter with Replaceable Hygrometer

FLIR MR176

Go to Product Support

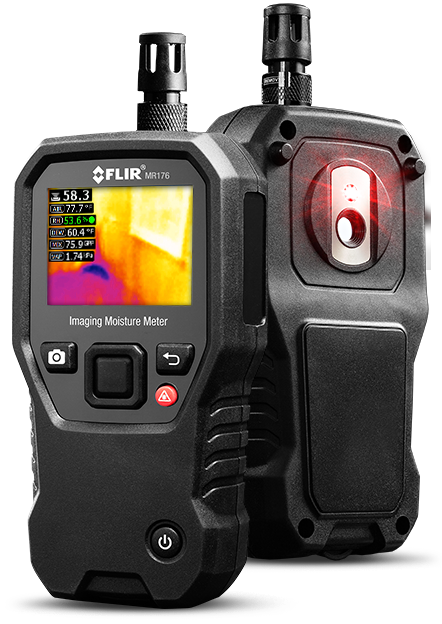

product image

Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot that moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.

Sales Contact Contact Sales

Get more flexibility from your moisture meter

  • Investigate Issues and Troubleshoot Quickly

    IGM helps you visually identify hidden moisture so you’ll know exactly where to place the meter probe for further investigation

  • Minimize Downtime

    The field-replaceable temperature and relative humidity sensor can simply be removed and replaced when needed to reduce unnecessary downtime.

  • Convenient, Flexible, Easy to Operate

    Get more done with the easy-to-navigate menu system. Share readings and images, and quickly create reports with free FLIR Tools software.

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

Specifications
Thermal image palettes
Iron, Rainbow, Ice, Greyscale
Pin Moisture
Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups
9 Material Groups
Air Temperature
Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
Relative Humidity
Range 0 to 100% / Basic Accuracy 2.5%RH
Dew Point
Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
Includes
MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable
Imaging & Optical
Display Type
QVGA (320 x 240 pixel) 2.3" color TFT graphical display
Field of View [W x H]
51° × 38°
Gallery
17540
Image Update Speed Frequency
9Hz
Imaging Detector
FLIR Lepton microbolometer
Laser Orientation
Single laser pointer to center of thermal image
Sensitivity
<150mK
Spectral Response
8 to 14µm
Thermal image minimum focus distance
4" (10cm)
Thermal image palettes
Iron, Rainbow, Ice, Greyscale
Thermal Image Resolution [W x H]
4800 pixels (80 × 60)
Measurement & Analysis
Air Temperature
Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
Detection Limit
19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m)
Dew Point
Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
Image Calibration
Automatic with manual lock scale option
Measurement Resolution
0.1
Pin Moisture
Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups
9 Material Groups
Pinless Measurement Depth
0.75" (19mm) Max
Pinless Moisture Range
0 to 100
Response Time Pin Mode
750ms
Response Time Pinless
100ms
Communication & Data Storage
Saved Image File format
BMP with measurement values overlaid
Stored Image Capacity
9999 images
Power
Battery
3.7V, 3000mAh Li-ion rechargeable via micro USB
Continuous Run Time
18 hours max
Typical Usage
4 work weeks
General
Includes
MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable
Packaging Size
33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.)
Environmental & Certifications
Agency Approvals
CE, FCC Class B, RCM
Certification Standards
EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
Mixing Ratio
Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg)
Relative Humidity
Range 0 to 100% / Basic Accuracy 2.5%RH
Vapor Pressure
Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa
Warranty
10 year
