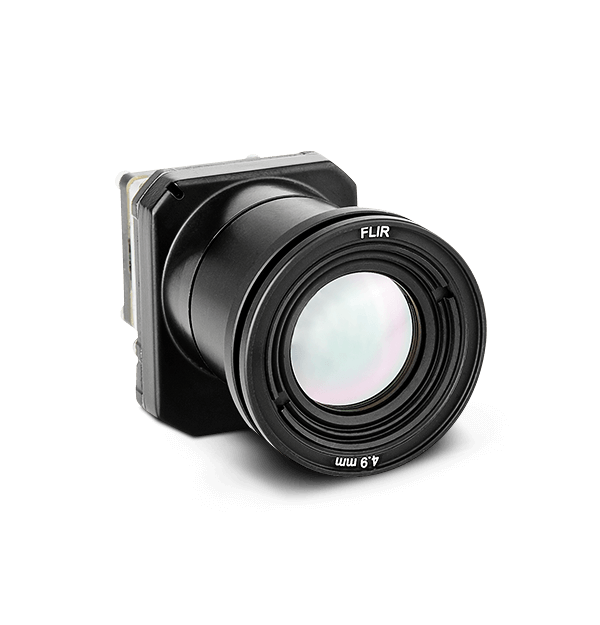

Uncooled, Longwave Infrared (LWIR) OEM Thermal Camera Module

Boson®

Model: Boson 320, 4° (HFOV) 55 mm Go to Product Support
product image

The Boson longwave infrared (LWIR) OEM thermal camera module sets the standard for size, weight, power, and performance (SWaP). Utilizing FLIR's advanced image processing and several industry-standard communication interfaces, Boson enables applications from firefighting to unmanned aerial vehicles and automotive development kits, all for as little as 800mW. The 12 µm pitch Vanadium Oxide (VOx) uncooled detector comes in two resolutions – 640 × 512 or 320 × 256. Both resolutions are available with multiple lens configurations, adding flexibility to integration programs. Radiometric models are also available with absolute temperature measurement in select configurations. The Boson is an OEM camera module that is intended to be integrated into a higher level system.

Sales Contact Contact Sales

  • Industry-Leading Size, Weight, and Power (SWaP) with Radiometry

    A full-featured VGA and QVGA LWIR thermal camera modules starting at 7.5 grams and <4.9 cm³

  • Proven Performance and Widely Deployed

    Consistent performance, flexibility, and availability of the widest range of LWIR model configurations from Teledyne FLIR

  • Designed for Integrators

    Shared mechanical/electrical compatibility across all Boson provides plug-and-play with existing designs

Outdoor Park - Boson vs Boson+ Comparison

Teledyne FLIR Office - Boson vs Boson+ Comparison

Teledyne FLIR Office - Boson vs Boson+ Comparison

Power Plant - Boson Radiometry

Traffic Surveillance - Boson Radiometry

Outdoor Fireplace - Boson Radiometry

Airport Runway - Boson Radiometry

Electrical Panel - Boson Radiometry

Boson Comparison


Boson+
Boson
  Resolution
 VGA: 640 × 512
QVGA: 320 × 256		 VGA: 640 × 512
QVGA: 320 × 256
  Pixel Size
 12 μm
  Spectral Band
 8μm - 14μm
  THERMAL Sensitivity
 Industrial: ≤20 mK
Professional: ≤30 mK		 Industrial: ≤40 mK
Professional: ≤50 mK
Consumer: ≤60 mK
  Video Pipeline & Latency
 AGC: Improved with deeper blacks
Latency: <6 ms		 AGC: Yes
Latency: <25 ms
  Scene Dynamic Range
 High Gain: up to 150 °C
Low Gain: up to 350 °C		 High Gain: <140 °C
Low Gain: <500 °C
  Frame Rate
 60Hz default; 30 Hz runtime selectable 60 Hz & 9 Hz
  Radiometry Option
 Radiometry will be available on select 640 x 512 and 320 x 256 resolution models in Q1 of 2024. Yes
  Low-Gain Mode Available
 Yes Yes
  Shutterless OptionS
 Yes Yes



Ajax Loader
THE TELEDYNE FLIR ADVANTAGE

Integrating Teledyne FLIR thermal camera modules is now easier with our library of how-to-videos, application notes, and our comprehensive support center with product drawings, datasheets, and more!

Learn more

Ajax Loader
The Power of Boson

With nearly sixty models, the ITAR-Free Boson family represents the most dynamic, highest-performing uncooled thermal imaging technology in the Teledyne FLIR portfolio.

View Products

Ajax Loader
Boson Lens Selector Tool

3 easy steps to determine the best camera focal length for your application!

Learn more

Ajax Loader
Prism

The end-to-end computational imaging ecosystem that supports various AI-powered object detection and tracking capabilities and advanced image processing.

Find out how

Ajax Loader
GUI 3.0 for Boson

The Boson GUI provides the ability to quickly access radiometry settings critical to high-speed integration cycles, balancing schedule, cost, and performance.

Learn more

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

Specifications
Thermal Imaging Detector
Uncooled VOx microbolometer
Pixel Size
12 µm
Frame Rate Options
60Hz baseline; 30 Hz runtime selectable
Thermal Spectral Range
Longwave infrared; 8 µm – 14 µm
Scene Temperature Range
to 140 °C (high gain) to 500 °C (low gain)
Performance
Scene Temperature Range
to 140 °C (high gain) to 500 °C (low gain)
Thermal Spectral Range
Longwave infrared; 8 µm – 14 µm
Imaging & Optical
Continuous Electronic Zoom
1X to 8X zoom
Digital Zoom
1x to 8x zoom
f-number
1.0
Frame Rate
60Hz baseline; 30 Hz runtime selectable
Frame Rate Options
60Hz baseline; 30 Hz runtime selectable
Image Orientation
Adjustable (vertical flip and/or horizontal flip)
Non-Uniformity Correction (NUC)
Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)
Pixel Pitch
12 µm
Pixel Size
12 µm
Resolution
320 × 256
Sensitivity [NEdT]
<40 mK (Industrial); <50 mK (Professional); <60 mK (Consumer)
Slow Video Option [factory configured]
≤9 Hz available
Snapshots
Full-frame snapshot via Boson GUI
Spectral Band
Longwave infrared; 8 µm – 14 µm
Symbol overlay
Re-writable each frame; alpha blending for translucent overlay
Thermal Imaging Detector
Uncooled VOx microbolometer
Connections & Communications
Control Channels
UART or USB
Peripheral Channels
I2C, SPI, SDIO
Video Channels
CMOS or USB2
Electrical
Input Voltage
3.3 VDC
Power Consumption
Varies by configuration; as low as 500 mW
Mechanical
Mounting Features
320 x 256 4° (HFOV) 55 mm (EFL)
Precision Mounting Holes
Four tapped M1.6x0.35 (rear cover)
Size (L x W x H)
21 × 21 × 11 mm (w/o lens)
Size (w/o lens)
21 × 11 mm
Weight
7.5 g without lens (configuration dependent)
Environmental & Approvals
Compliance and Certifications
NDAA compliant
ROHS compliant
REACH compliant
Non-Operating Temperature Range
-50°C to 85°C
Operating Temperature Range
-40°C to 80°C
Operational Altitude
12 km (max altitude of a commercial airliner or airborne platform)
Shock
1,500 g @ 0.4 msec
Solar protection
Integral
Export Designations
ECCN Code
6A003.b.4.b (Fast Video, 60Hz)
6A993.A (Slow Video, 9Hz)
